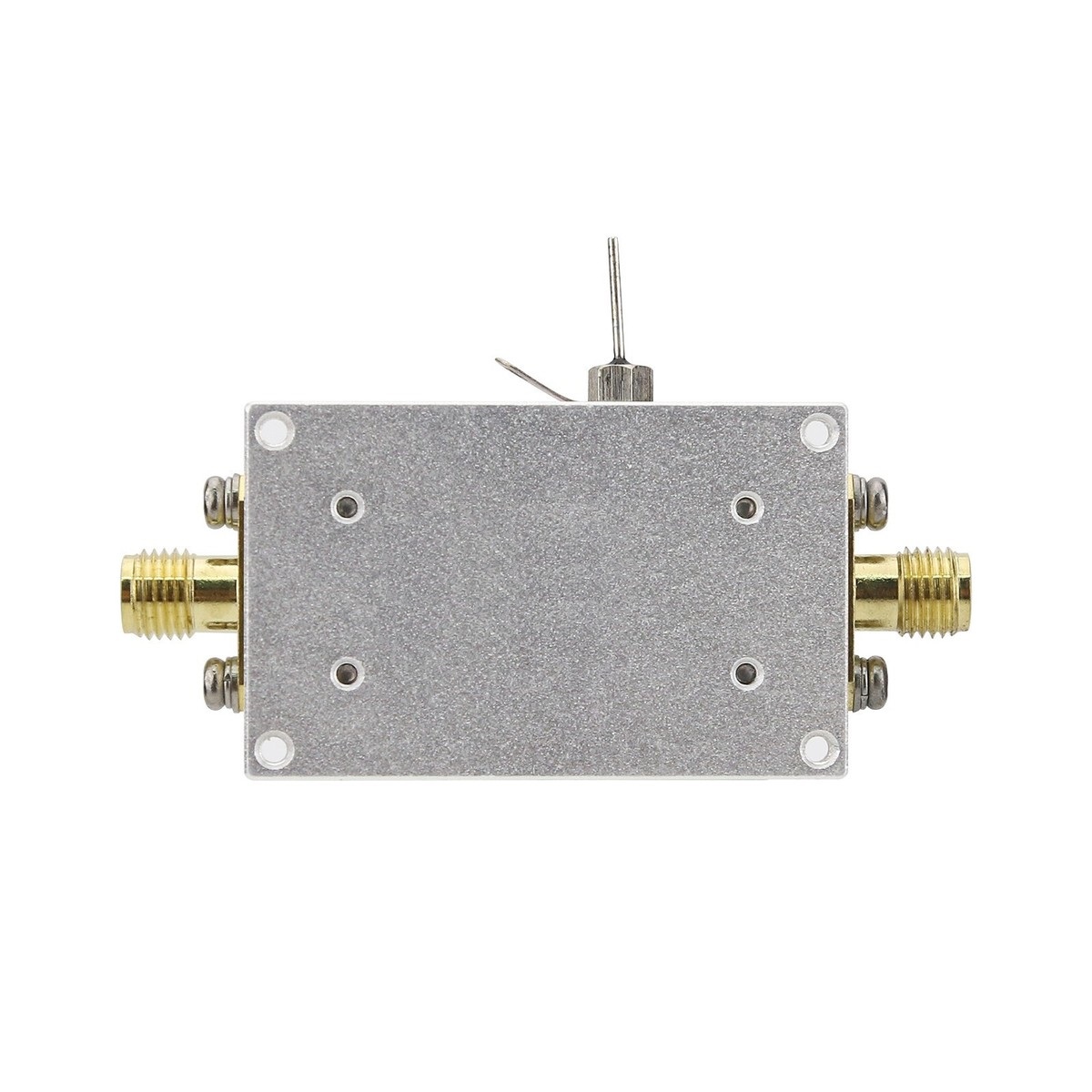

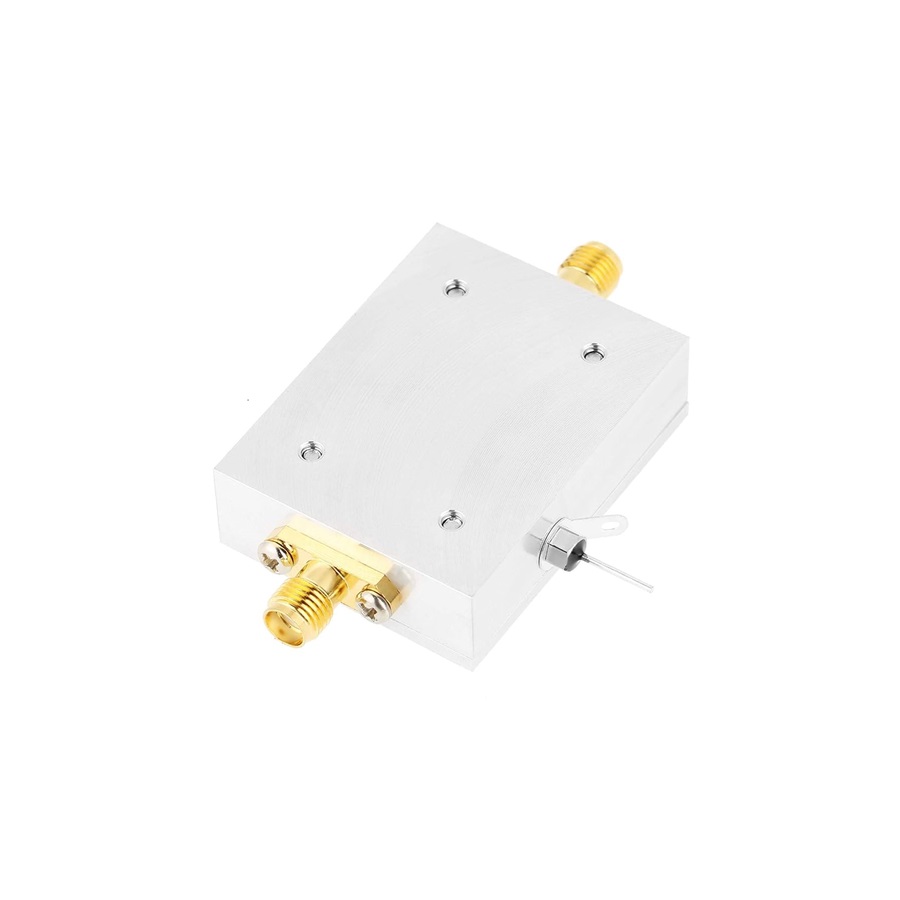

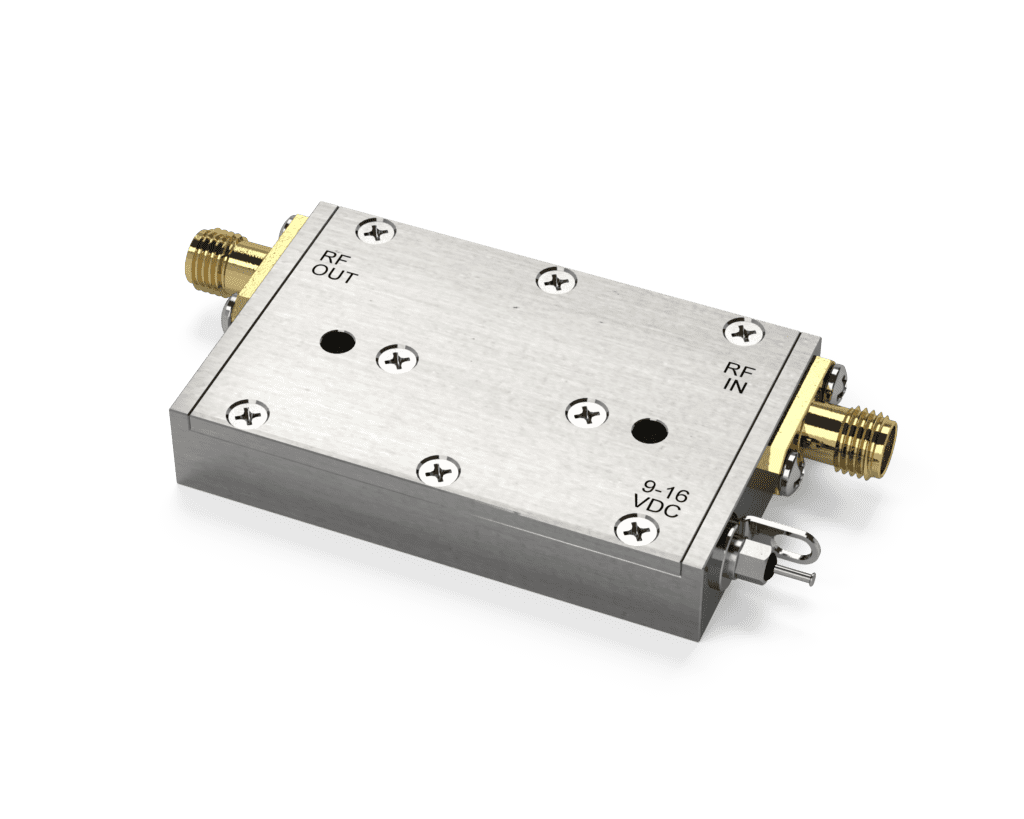

Low Noise Amplifier deliver reliable, high-performance amplification across 1 GHz to 40 GHz. LNAs provide high gain, excellent linearity, and stable 50 Ohm matching, simplifying system integration while maintaining signal integrity.
Ideal for telecommunications, radar, aerospace, defense, and test & measurement applications, these amplifiers feature built-in thermal protection, bias sequencing, and reverse polarity safeguards. linkRF also offers customizable solutions to meet your unique frequency and performance requirements.
- Low Noise Figure: The primary goal of an LNA is to introduce very little additional noise, measured by its noise figure. A lower noise figure indicates better performance.
- High Gain: LNAs provide sufficient amplification to increase the power of the weak input signal without significantly degrading the SNR.
- High Sensitivity: By boosting weak signals above the noise floor, an LNA enhances the sensitivity of the receiver, allowing it to detect fainter signals
Products Summary
| Part Number | Freq Start (GHz) | Freq Stop (GHz) | Power Supply (V) | Gain (dB) | Current (mA) | Noise Figure (dB) | Datasheet | Delivery Time | Get Quote |
| LNA-8.5-9.6-V1 | 8.5 | 9.6 | +15V | 26.5 | 80 | 1.5 | Datasheet | 4 weeks | Get Quote |
| LNA-34.1-34.9-V2 | 34.1 | 34.9 | +15V | 23.2 | 90 | 1.5 | Datasheet | 4 weeks | Get Quote |
